Famous Best High Speed Rotary Tablet Press Machine Suppliers – GZP500H series High Speed Rotary Tablet Press – Chengxiang Detail:

Technical Feature

products (2)

a. Force Feeder
The feeding process is under sealed conditions, which can ensure the cleanliness of material.
Improve granules flow-ability and filling performance, ensure the filling precision.
It can be avoided to dust and save material than nature feeder.

products (4)

b. Automatic oil & grease central lubrication system
The oil lubrication can be set and controlled through PLC, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

products (6)

c. Double press rollers
Perfect tablet system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and have not tablet weight difference.

products (5)

d. Pressure sensing protection device
This machine can stop automatically in case of overpressure to protect the punch pins from being damaged.

products (3)

e. PLC and touch screen control.

products (1)

f. Sealing Rings
1. Upper punch sealing rings can avoid the oil drop and keep raw material for cleaning.
2. Lower punch sealing rings can avoid materials drop down to the machine.

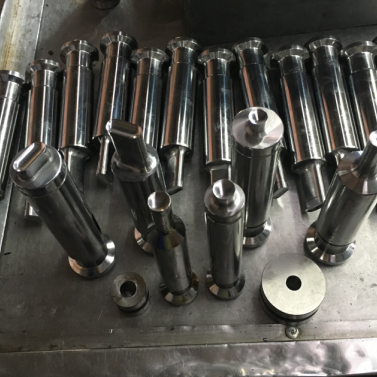

Punches & Dies

Punches & Dies
The P/D conform TSM-Tooling standard. We can make difference kinds of P/D as per requirements. Such as: round shape, oblong shape, animal shape, etc.

Main Technical Specifications

Model		GZP-35	GZP-43	GZP-51	GZP-55	GZP-57
Number of Stations		35	43	51	55	57
Tooling Standard		D	B	ZP	BB	BBS
Maximum main pressure (kN)		100
Max. pre-pressure （kN）		20
Max Tablet Diameter (mm)	Round Tablet	25	18	13	13	11
	Irregular Tablet	25	19	16	16	13
Max Filling Depth (mm)		20	18	15	15	15
Max Tablet Thickness (mm)		8	7	6	6	6
Max Turret Speed (r/min)		60
Max Production Capacity (pcs/h)		252000	309600	367200	396000	410400
Motor Power (kW)		11	7.5
Overall Size (mm)		137011701800
Machine Weight (kg)		3200

Main Technical specification

Model	Transportation Capacity (kg/h)	Air Pressure	Air Consume	Overall Size
		(Mpa)	(L/min)	(mm)
QVC-1	350	0.4-0.6	180	Φ140×560
QVC-2	700	0.4-0.6	360	Φ213×720
QVC-3	1500	0.4-0.6	720	Φ290×850
QVC-4	3000	0.4-0.6	1440	Φ420×1150
QVC-5	6000	0.4-0.6	2880	Φ420×1150
QVC-6	9000	0.4-0.6	4320	Φ420×1350

pdd (1)
pdd (2)
pdd (3)

SZS200 Uphill Type Tablet Deduster

Application
SZS200 Uphill Deduster is a special equipment to wipe out burr and dust of tablet whilst going up way. It can be connected with tablet press and metal detection systems. 316Lstainless steel are used for all metal parts contacting tablets. Design of GMP.

Technical Parameters

Model	SZS200
Max. Output(tablets/h)	1000000( Ø8-3mm)
Rated Power (W)	150
Dedust Route(M)	6.2
Max. tablet (mm)	Ø25
Power Supply	110V /220V 50Hz/60 Hz 1P
Compressed air	0.1m³/min 0.1MPa
Vacuum	2.5 m³/min -0.1MPa
Max. Noise (dB(A))	»75
Overall Dimension <LWH> (mm)	500X550X1350-1500
Weight(kg)	70
